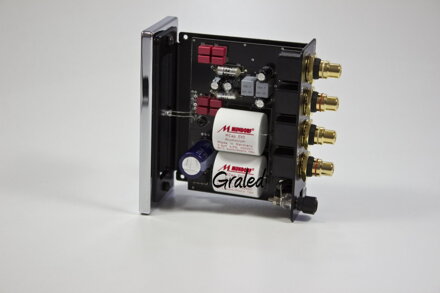

Résumé gramo MM/MC předzesilovač Analogis

Technická data:
Type Active phono pre-amplifier for MC and MM pickup systems
Sensitivity 0,52mV @1kHz, MC mode (SW-A5 ON)
                4,35mV @1kHz, MM mode (SW-A5 OFF)
Gain MC mode:  63dB @ 1kHz (at 0dB = 0.775V)
        MM mode: 45dB @ 1kHz
Crosstalk attenuation > 86dB (@1kHz)
Power consumption approx. 2VA (operational)
Weight 604 g
Dimensions 110 x 53 x 108 mm (W x H x D)
Output level 0dB = 755mV
Scope of supply:
AC adapter, cartridge alignment gauge, Résumé, user manual

Návod ke stažení zde.
